| Wavelength(nm) | (800nm to 1650nm ) | ||
| Detector | InGaAs | ||
| Measurement Range (dBm) | -70~+10 | ||
| Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625(more calibrated wavelength can be optional) | ||
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | ||
| Connector | SC, FC,ST/ Universal 2.5mm adaptor | ||

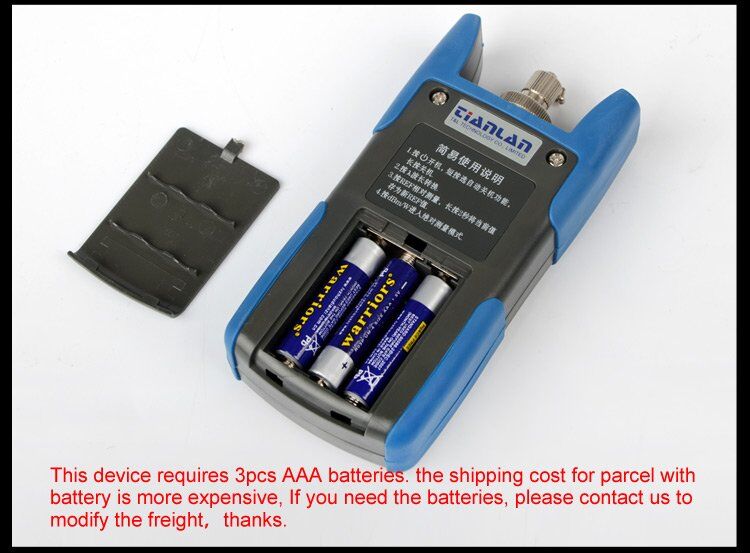

| Power Supply | 3pcs AAA batteries | ||
| Battery Operating Time | 240 h with 1.5V Battery(3) | ||
| Operating Temperature(oC) | _ 10 ~ +50 | ||
| Storage Temperature(oC) | _ 20 ~ +70 | ||
| Working hours | >120 hours ( without backlight | ||
| Relative Humidity | 90% (+30C ) | ||
| Weight | 160 g | ||
