Application:
☆.Adopted to indoor and Outdoor distribution.
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Suitable for floor connection.

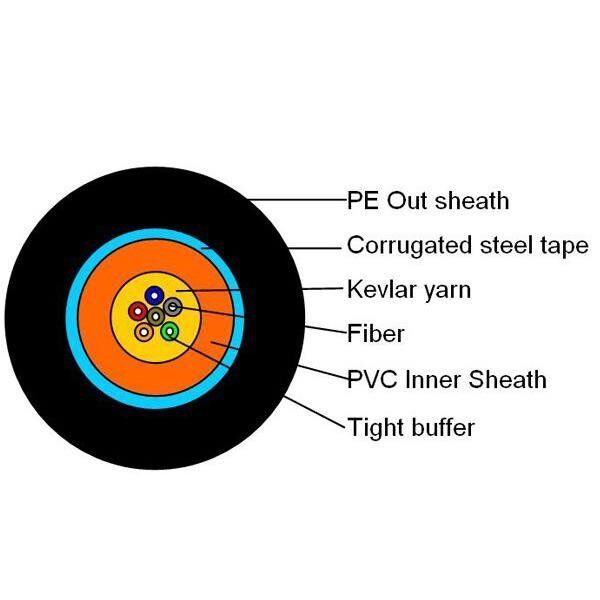

Characteristics:
☆.Hight strength kevlar yarn member.
☆.More tight buffered design.
☆.Round construction.
☆.Saft. Easy to strip.

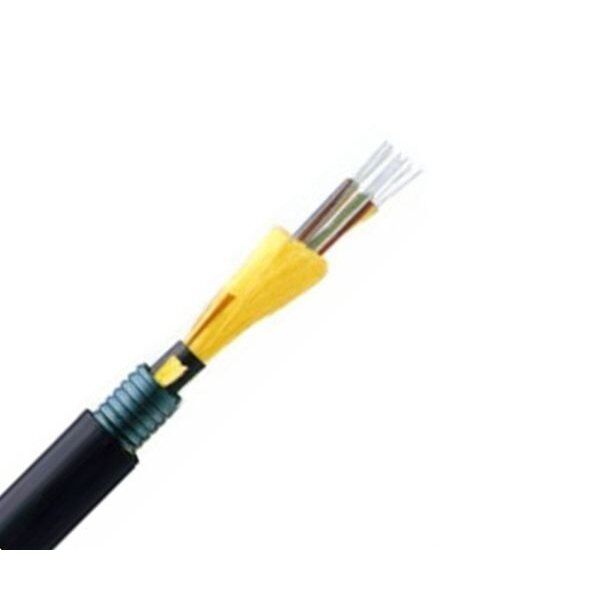

☆.Steel armored flexble tube.increase the cable’s twist
| Technical Parameters: | ||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 10.0 | 0.9 | 76.00 | 1500 | 600 | 1000 | 200 | 20D | 10D | -20+60 | |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber |
|||
