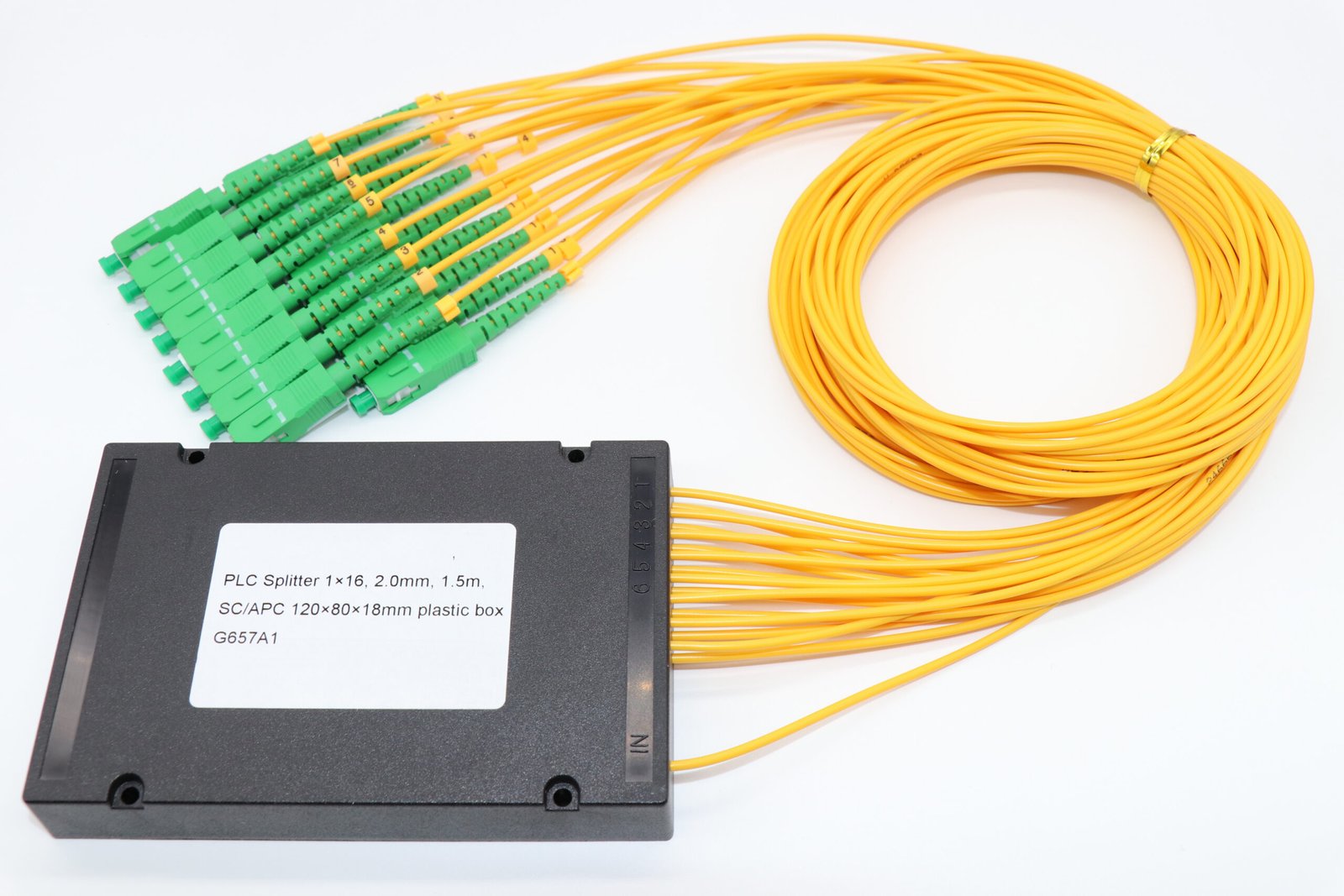

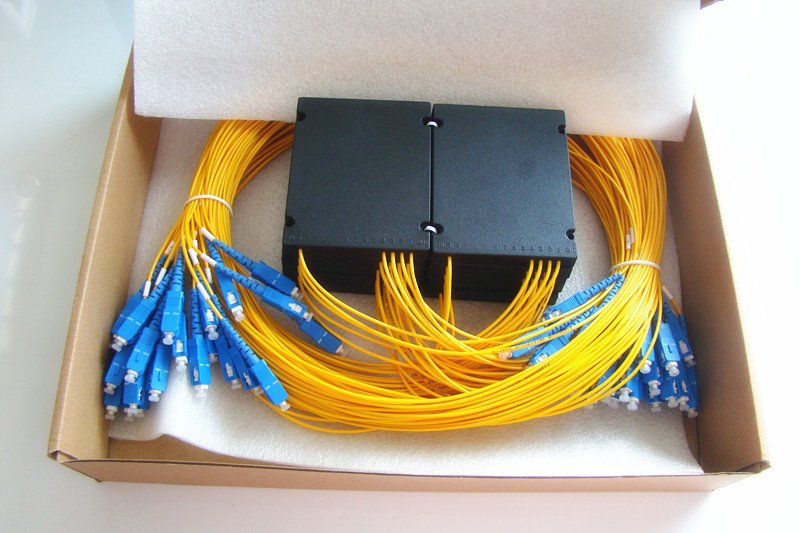

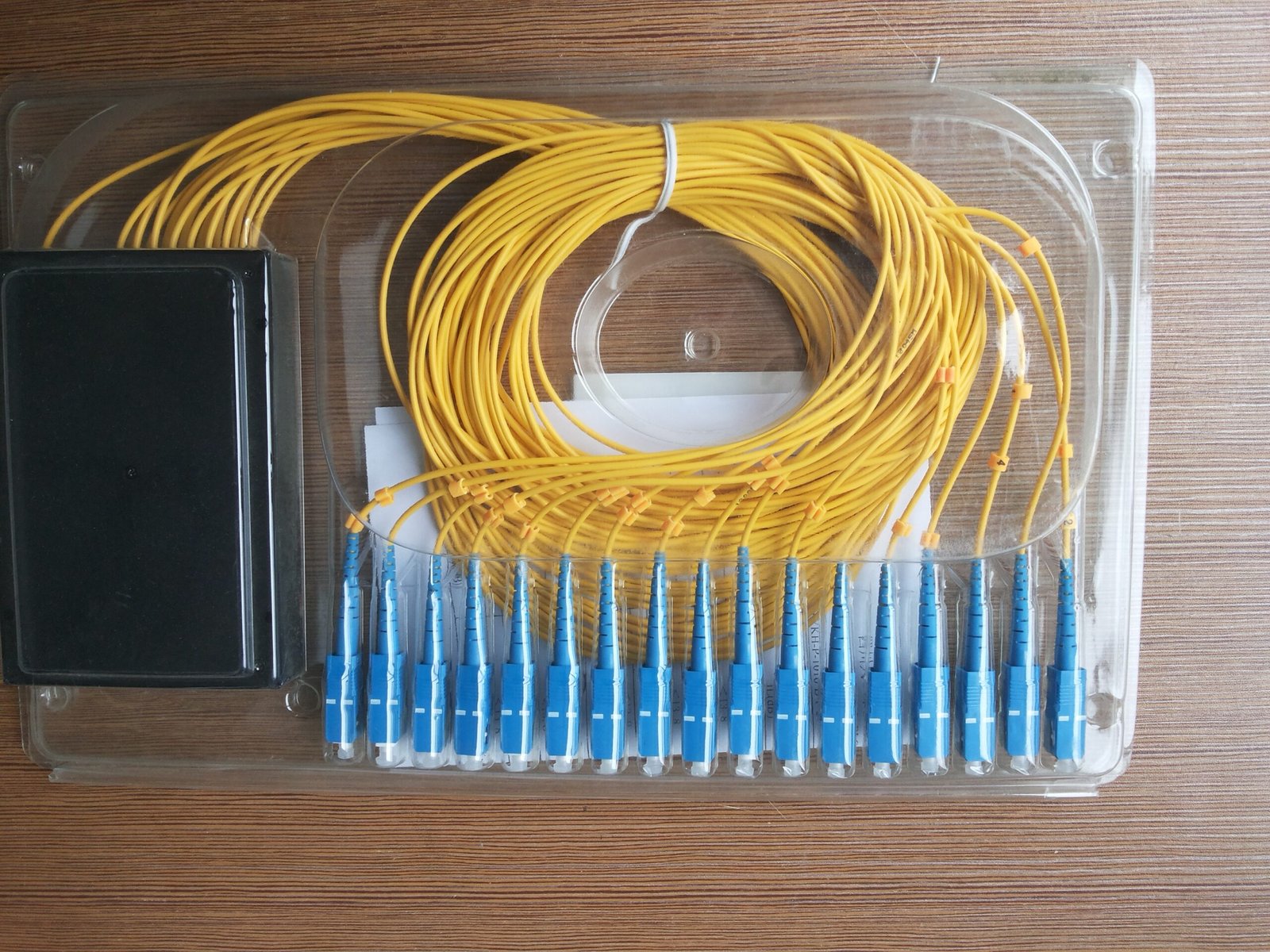

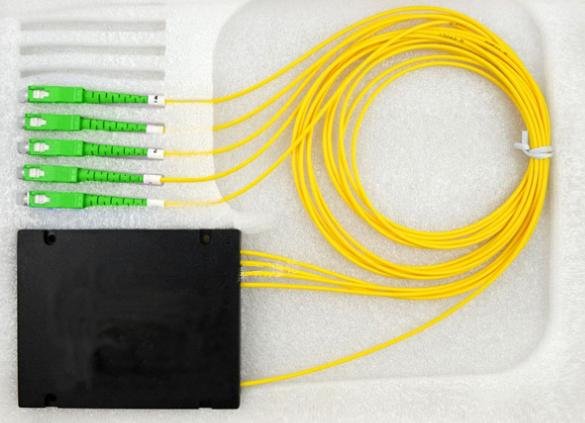

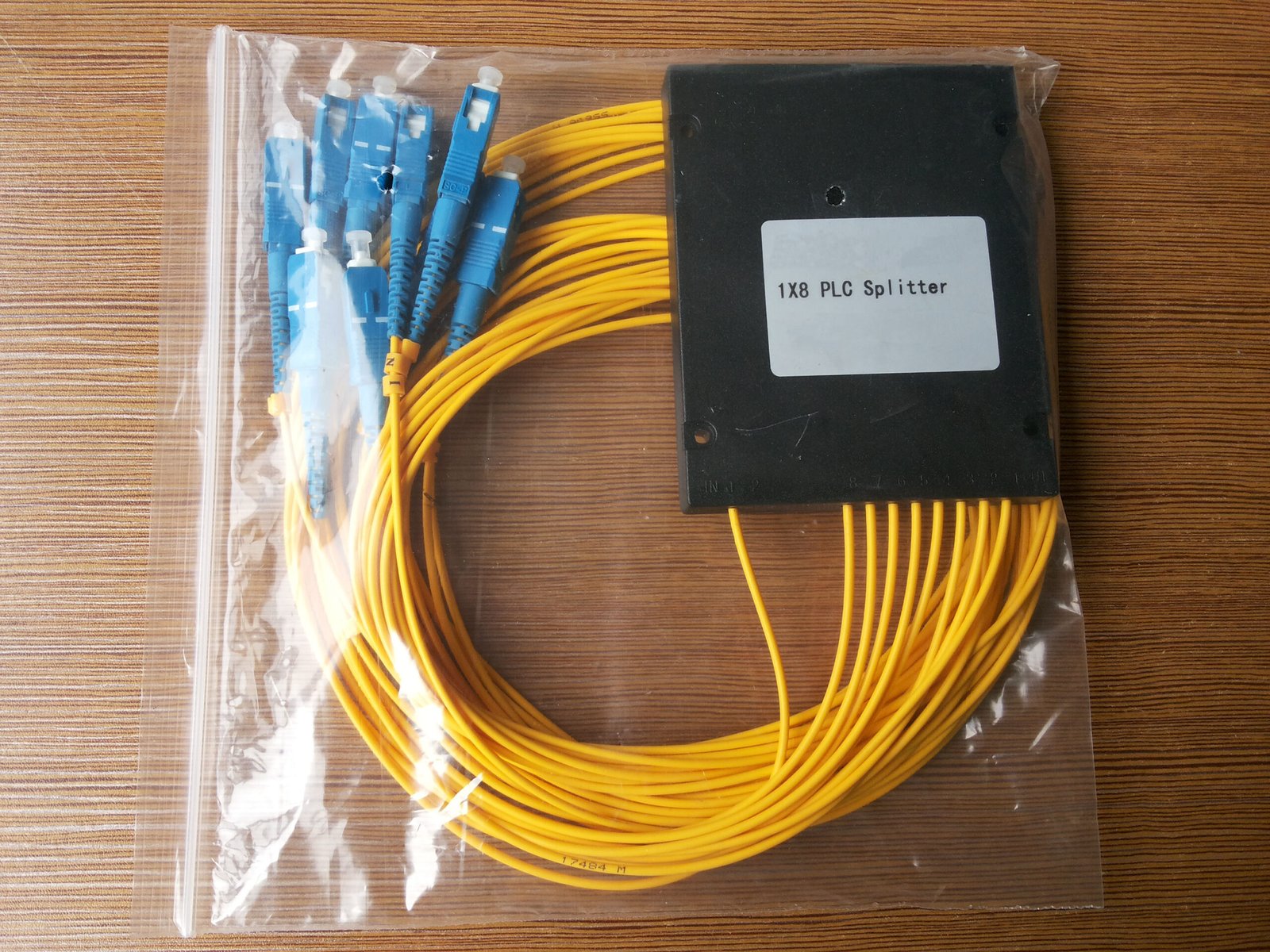

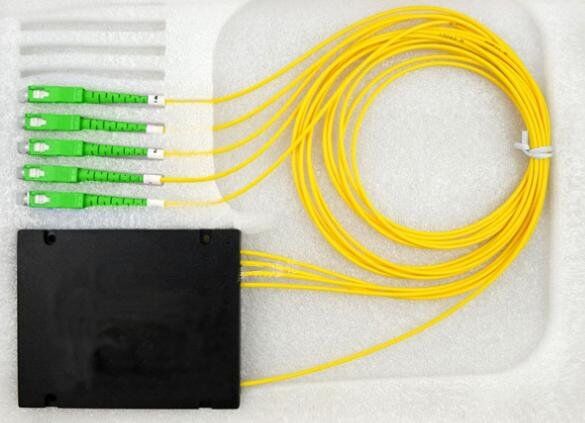

PLC splitter ABS Box type is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. PLC Splitter Modules are available in the form of an ABS box with fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs.
PLC splitter ABS Box type | ||||||||||
Wavelength(nm) | 1260-1650 | |||||||||
Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
Insertion Loss(with connector)(dB) | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤21 |
Uniformity (dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
PDL(dB) | ≤0.2 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 |
Size(H×W×L)(mm) | 10×80×100 | 18×80×120 | 18x115x141 | 10×80×100 | 18×80×120 | 18x115x141 | ||||
Return Loss(dB) | UPC≥50 APC≥55 | |||||||||
Directivity(dB) | ≥55 | |||||||||
Temperature Range(℃) | -40~+85 | |||||||||
Storage Temperature(℃) | -40~+85 |
