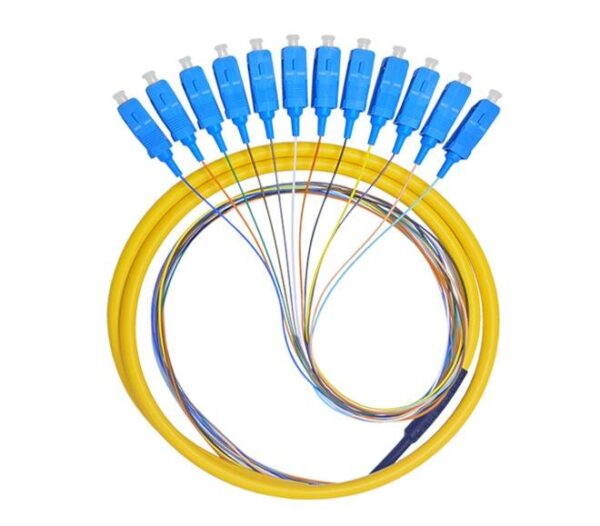

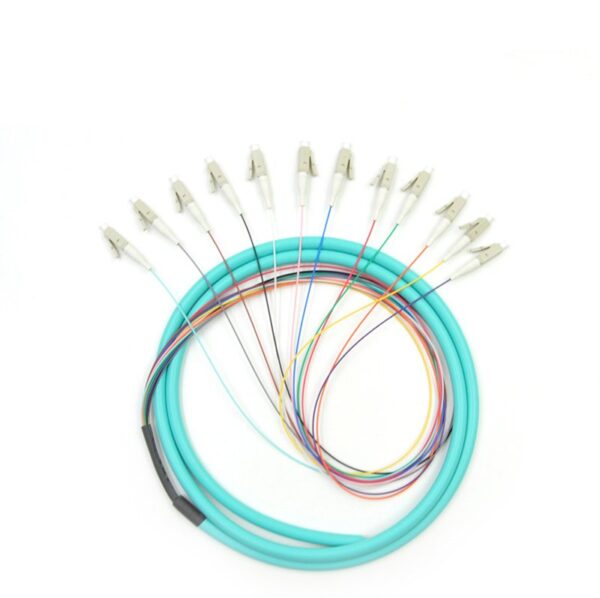

Fan-out Fiber Optic Patch Cords are designed for patch panels or cable ducts where space-saving is required. For cables that run from patch panels to equipment or patch panels to patch panels,the Fan-out Fiber Optic Patch Cords with either ribbon cables or distribution cables can save space for cable ducts.
Applications:
Features:
Optical Specification
| Connector | SC,FC,LC,ST,MU,E2000 | ||
| Polishing | SM/UPC | MM/PC | SM/APC |
| Insertion Loss(max) | ≤0.30dB | ≤0.25dB | ≤0.30dB |
| Return Loss(min) | ≥50 dB | ≥35 dB | ≥60 dB |
| Tensile Strength | >300N | ||
| Durability | <0.20 dB typical change, 1000 matings | ||
| Repeatability | ≤0.1dB | ||
| Storage , Operating Temperature [°C] | -40~+85 | ||
