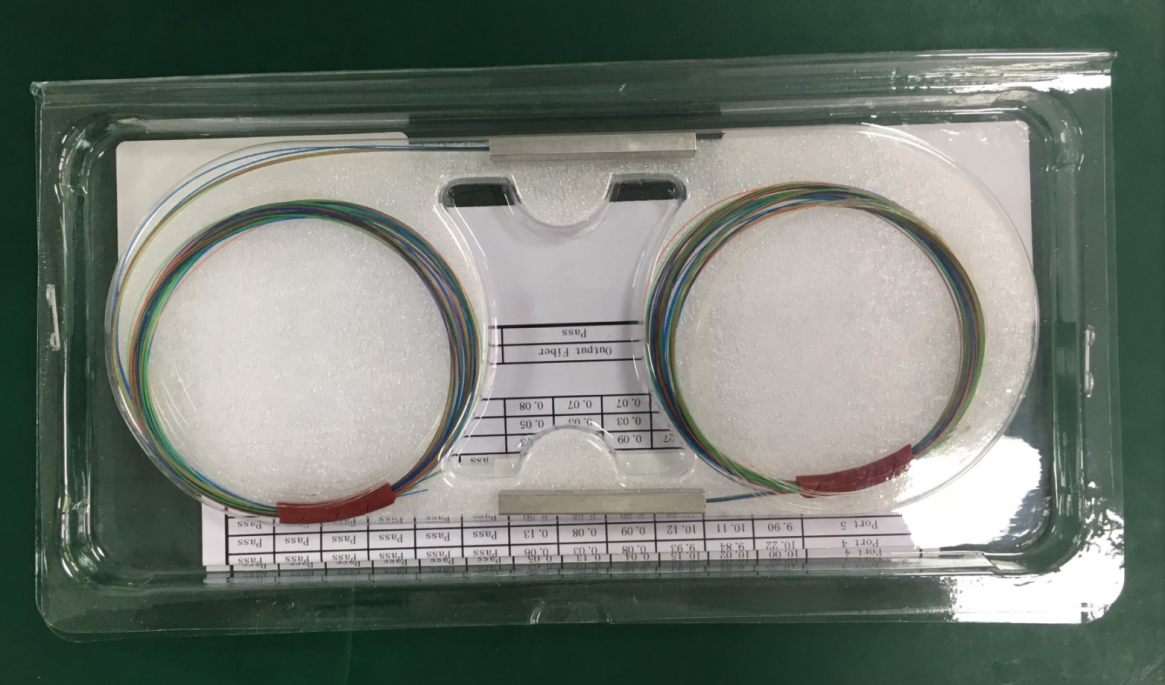

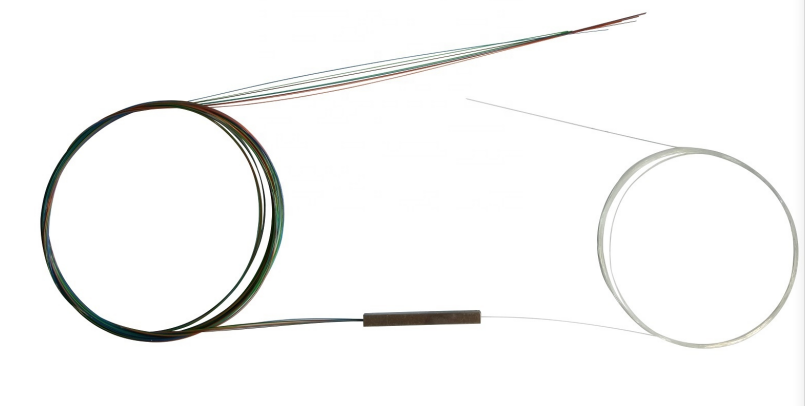

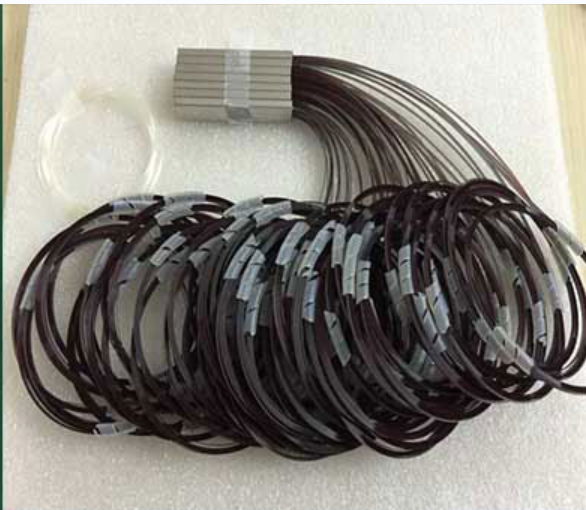

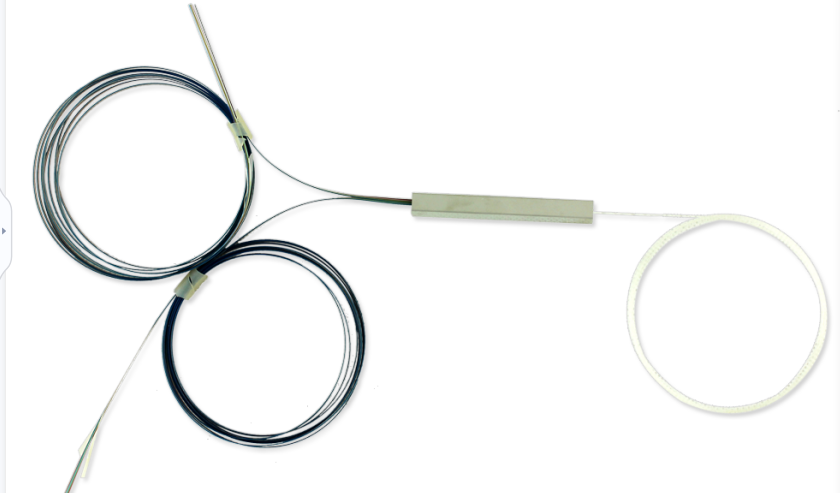

Bare fiber PLC splitter consists of PLC splitter chip and input, output optical fiber array in a square metal tube. The input and output parts are with 0.9mm or 250um bare fibers. The bare fiber part can be connected with various types of optical fiber connector, such as SC, LC, FC and ST connectors.
| Bare Fiber PLC Splitter | ||||||||||
| Wavelength(nm) | 1260-1650 | |||||||||
| Parameters | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Insertion Loss（with connector）(dB) | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤21 |
| Uniformity (dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
| PDL(dB) | ≤0.2 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.2 | ≤0.25 | ≤0.3 | ≤0.3 | ≤0.3 |
| Size(H×W×L)(mm) | 4x4x50 | 4x7x50 | 4x12x60 | 4x4x50 | 4x7x50 | 4x12x60 | ||||
| Return Loss(dB) | UPC≥50 APC≥55 | |||||||||
| Directivity(dB) | ≥55 | |||||||||
| Temperature Range(℃) | -40～+85 | |||||||||
| Storage Temperature(℃) | -40～+85 | |||||||||
