Description

• Up to 11.2Gbps per channel bandwidth
• Up to10km transmission
• 4 CWDM lanes MUX/DEMUX design
• Duplex LC connector • QSFP MSA compliant
• Single +3.3V power supply operating
• Built-in digital diagnostic functions
• Temperature range 0°C to 70°C
• RoHS CompliantOrdering information：


  Part Number	Product	Data rate	wavelength	Laser Type (TX/RX)	Power Budget	Fiber  Type	Distance	Connector	Temp

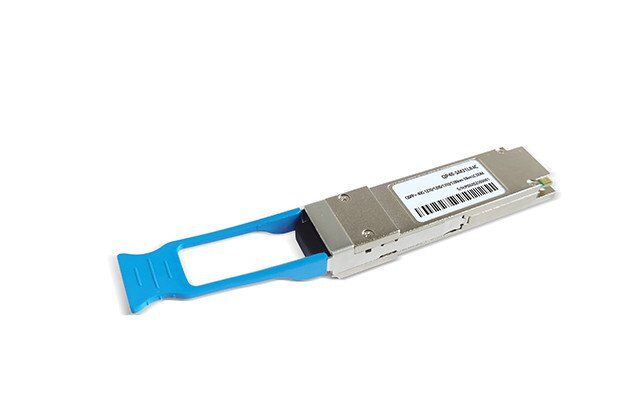

  QP40-SM31LR4C	QSFP+ LR4	40Gbps	1271~1331nm	DFB/PIN	4.5dB	SMF	10km	LC	0~70℃
