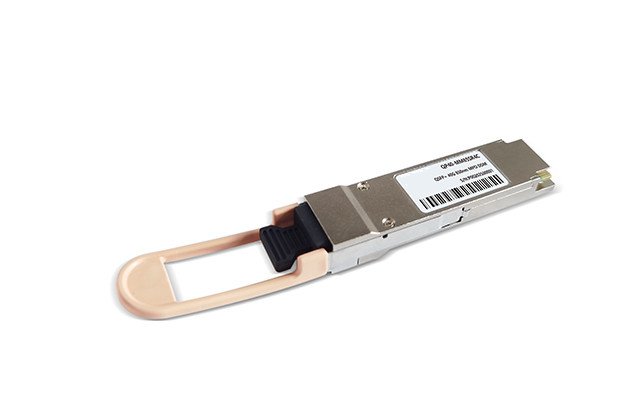

40G QSFP+ SR4

Category: 40G

Description
Reviews (0)

Description

Hot Pluggable QSFP+ form factor
Up to 100m on OM3
Supports bit rate up to 10.3125Gb/s per lane
Single MPO12 interface
Low power consumption <1.5W
Single +3.3V power supply
Operating case temperature:0 to 70 °C

RoHS compliant

Ordering information:

Part Number

Product

Data rate

wavelength

Laser Type

(TX/RX)

Power

Budget

Fiber

Type

Distance

Connector

Temp

QP40-MM85SR4C

QSFP+ SR4

40Gbps

850nm

VCSEL/PIN

3.5dB

MMF

100m/OM3,

150m/OM4

MPO

0~70℃
