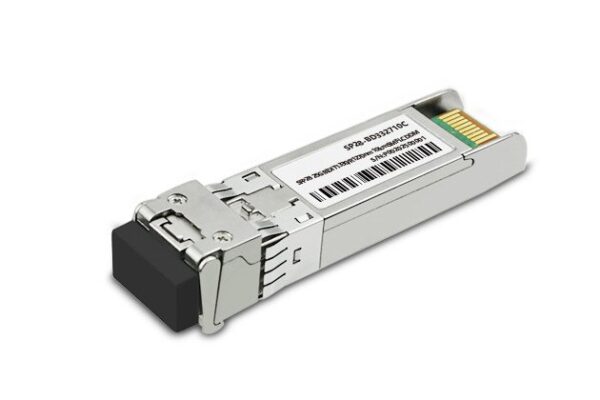

Description

• Up to 25.78Gbps Data Links
• Up to 10km transmission on SMF
• Single LC receptacle,Bi-directional
• DFB Laser and PIN receiver
• A Type: 1270nm TX/1330nm RX
• B Type: 1330nm TX/1270nm RX
• Build-in dual CDR , for lower EMI
• Digital diagnostics functions are available via the   I2C Interface
• Hot-pluggable SFP28 footprint
• Specifications compliant with SFF 8472
• Compliant with SFF-8402 with LC connector
• Single 3.3V power supply
• Power dissipation < 1.2W
• Case operating temperature:

Commercial:0°C to+70°C

Extended: -10°C to +85°C

Industrial: -40°C to +85°C

Ordering information：

Part Number	Product	Data rate	wavelength	Laser Type (TX/RX)	Power Budget	Media  Type	Distance	Temp
SP28-BD332710C/I	SFP28 BIDI 10km	25.78 Gbps	T1330/R1270nm	DFB/PIN	11dB	SMF	10km	0~70℃/-40~85℃
