Description

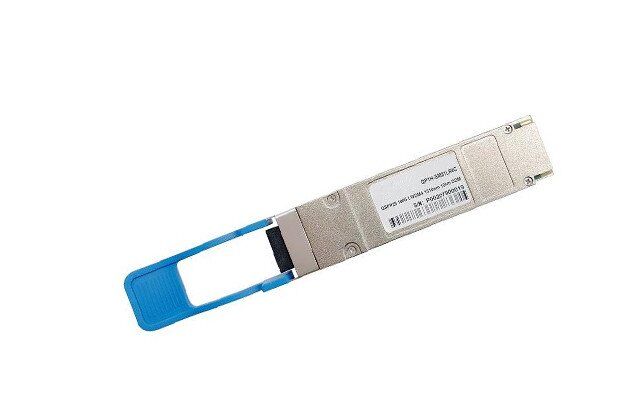

• Hot Pluggable QSFP28 form factor
• Supports aggregate bit rate up to 103.1Gb/s
• LC Duplex optical interface
• 4x25G/s CWDM transmitter, PIN array detector
• Operating case temperature:0 to 70 °C
• Low power consumption <3.5W
• Applicable for 2km SMF connection
• All-metal housing for superior EMI performance
• IIC management interface
• Single +3.3V power supply
• RoHS compliant


  Ordering information：

  Part Number	Product	Data rate	wavelength	Laser Type (TX/RX)	Power Budget	Fiber  Type	Distance	Temp
  QP1H-SM31CR4C	QSFP28 CR4	103Gbps	CWDM 1271~1331nm	DML/PIN	8dB	SMF	2km	0~70℃
